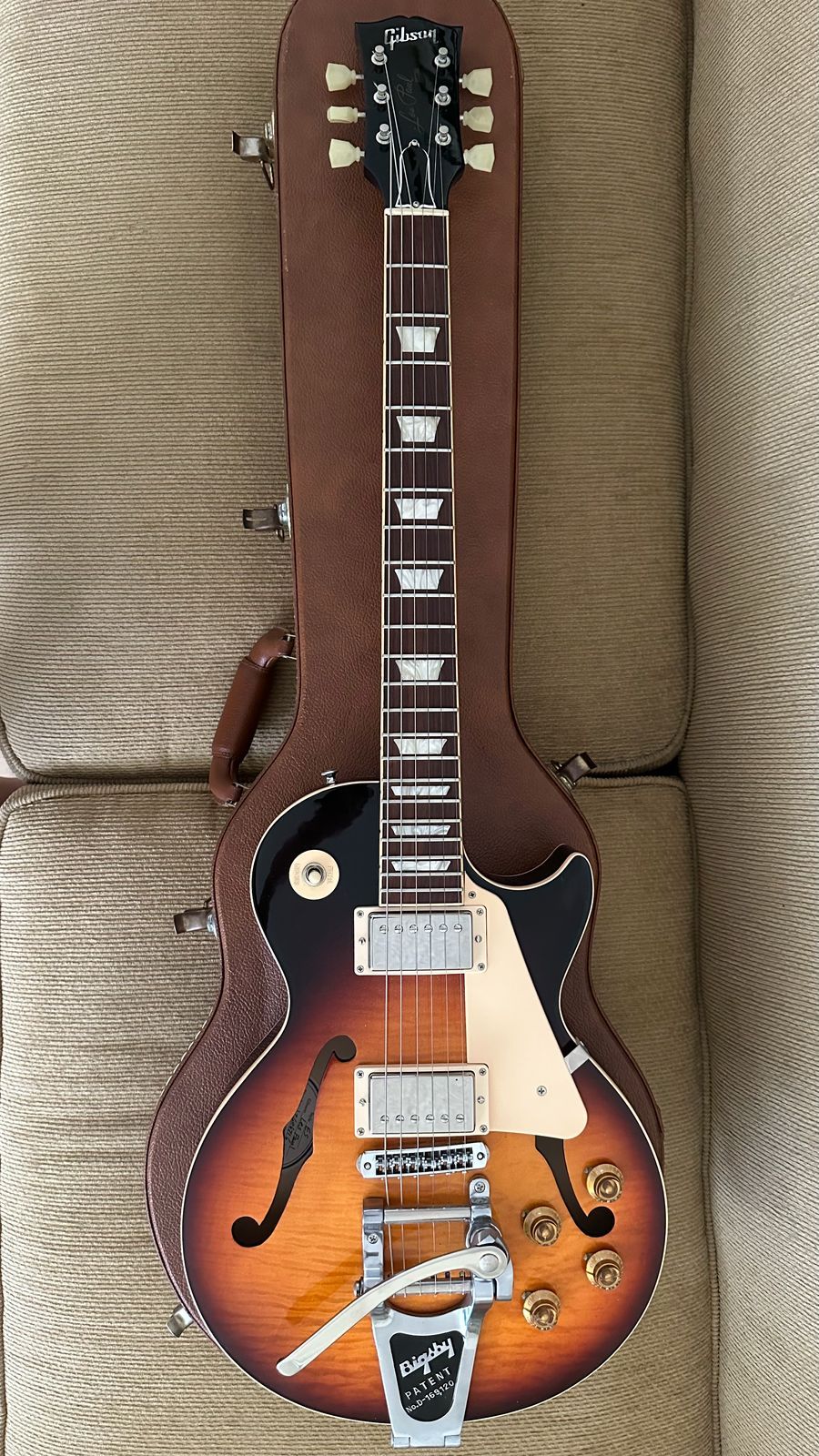

2016 Gibson Memphis ES-Les Paul Bigsby - Limited Run - Bourbon Bur - Only 1000 Made - MINT

Only 1000 made. Very limited Run 2016 Gibson Memphis Es Les Paul in MINT Condition.

I never gigged with this guitar but played it home.  It sounds, plays, and looks perfect.

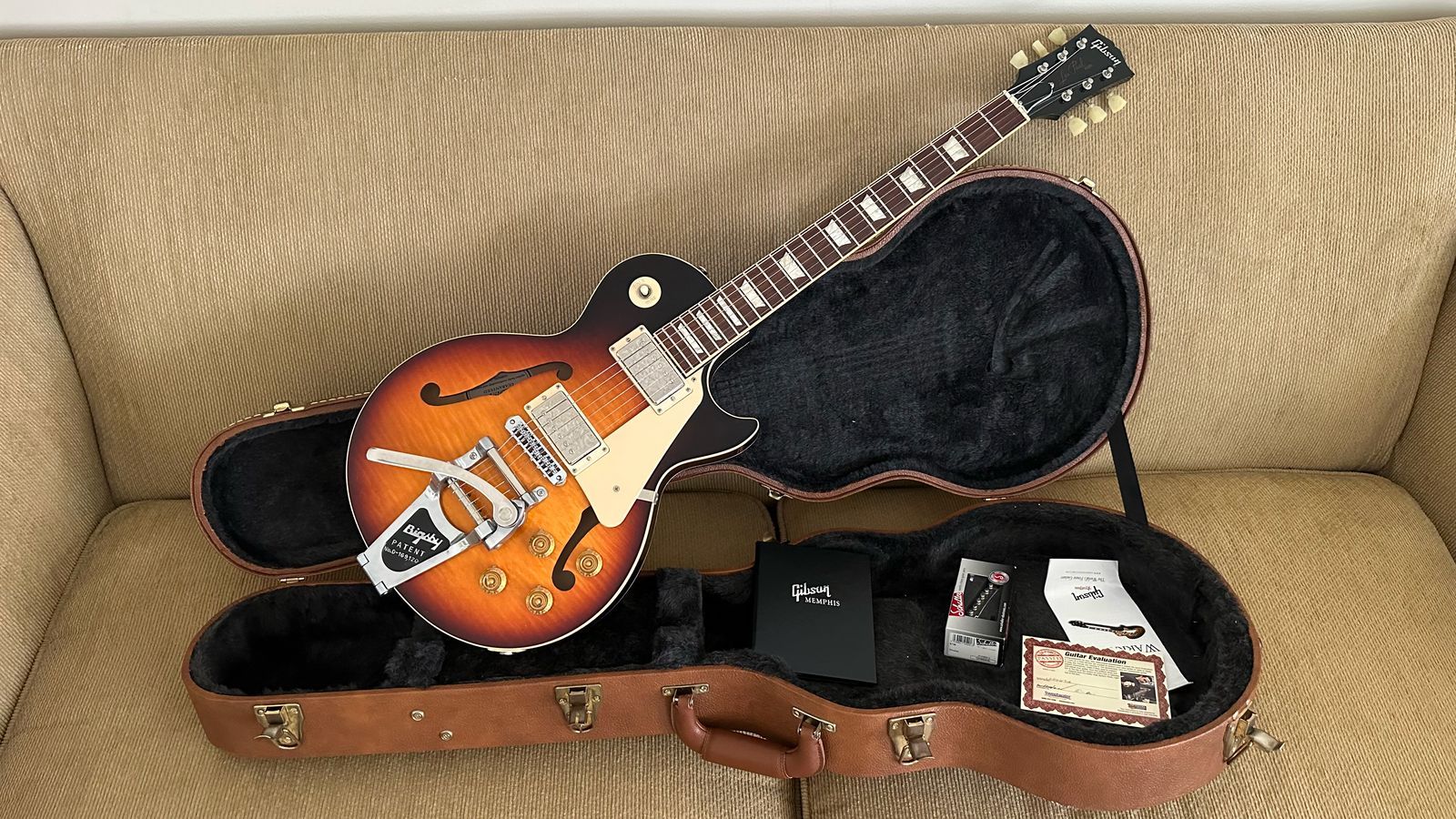

Comes with mint hardshell Case and all the original case candy.  I will ship it in the original box that it came to me in with all the original packaging.

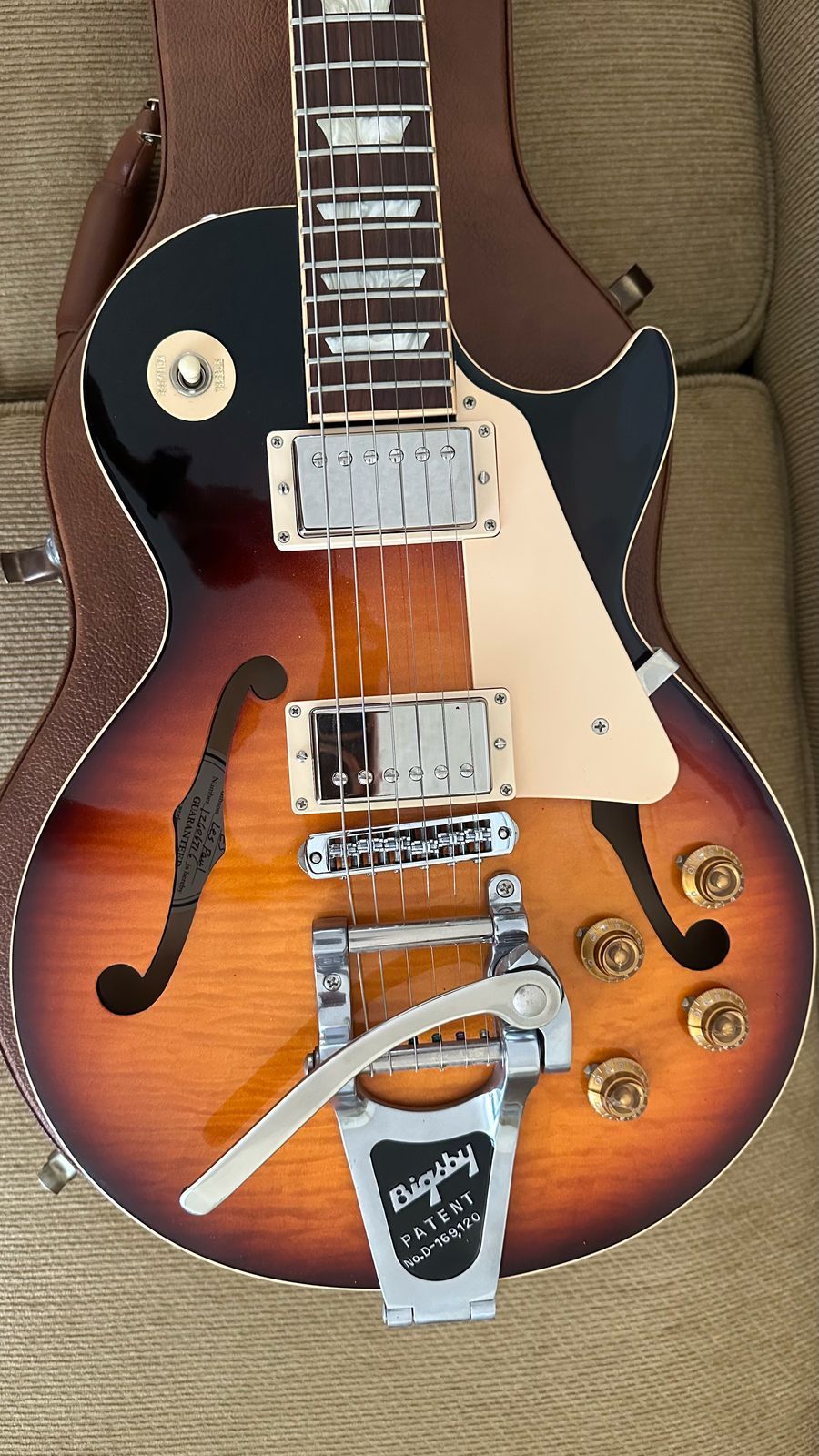

Classic Bigsby vibrato joins the perfect marriage of Les Paul and ES-335 for powerful tones and a lightweight playing feel, enhanced by PAF-style MHS pickups and a comfortable rounded 'C' neck profile.
F-Hole emblem engraved truss rod coverThe iconic symbol of the Gibson ES line is now the hallmark of Gibson MemphisRedesigned neck dimensionsAdded thickness to Peghead transition provides greater strength and stabilityHistoric truss rodSuperior Adjustability due to the Teflon coating, larger diameter rod, original brass anchor and larger washerBone nutBone for smooth tuning and excellent durabilityRolled neck bindingBinding is rounded off to comfortably fit the contours of the player's handLow profile fretsLower fret height provides smooth playability and accurate intonationNew finish colorsNew variations on your favorite vintage color schemes as well as all new, eye catching colorsCapacitor changesLess treble cut than previous capacitor results in a tone with a harmonically rich, singing qualityBigsby B-7Iconic vibrato tailpiece adds atmospheric sonics and stylish looks.

F-Hole emblem engraved truss rod cover: The iconic symbol of the Gibson ES line is now the hallmark of Gibson Memphis
Redesigned neck dimensions: Added thickness to Peghead transition provides greater strength and stability
Historic truss rod: Superior Adjustability due to the Teflon coating, larger diameter rod, original brass anchor and larger washer
Bone nut: Bone for smooth tuning and excellent durability
Rolled neck binding: Binding is rounded off to comfortably fit the contours of the player's hand
Low profile frets: Lower fret height provides smooth playability and accurate intonation
New finish colors: New variations on your favorite vintage color schemes as well as all new, eye catching colors
Capacitor changes: Less treble cut than previous capacitor results in a tone with a harmonically rich, singing quality
Bigsby B-7: Iconic vibrato tailpiece adds atmospheric sonics and stylish looks
MHS Humbucker Pickups: Total PAF tones from vintage-style windings with mismatched coils
Body

Top

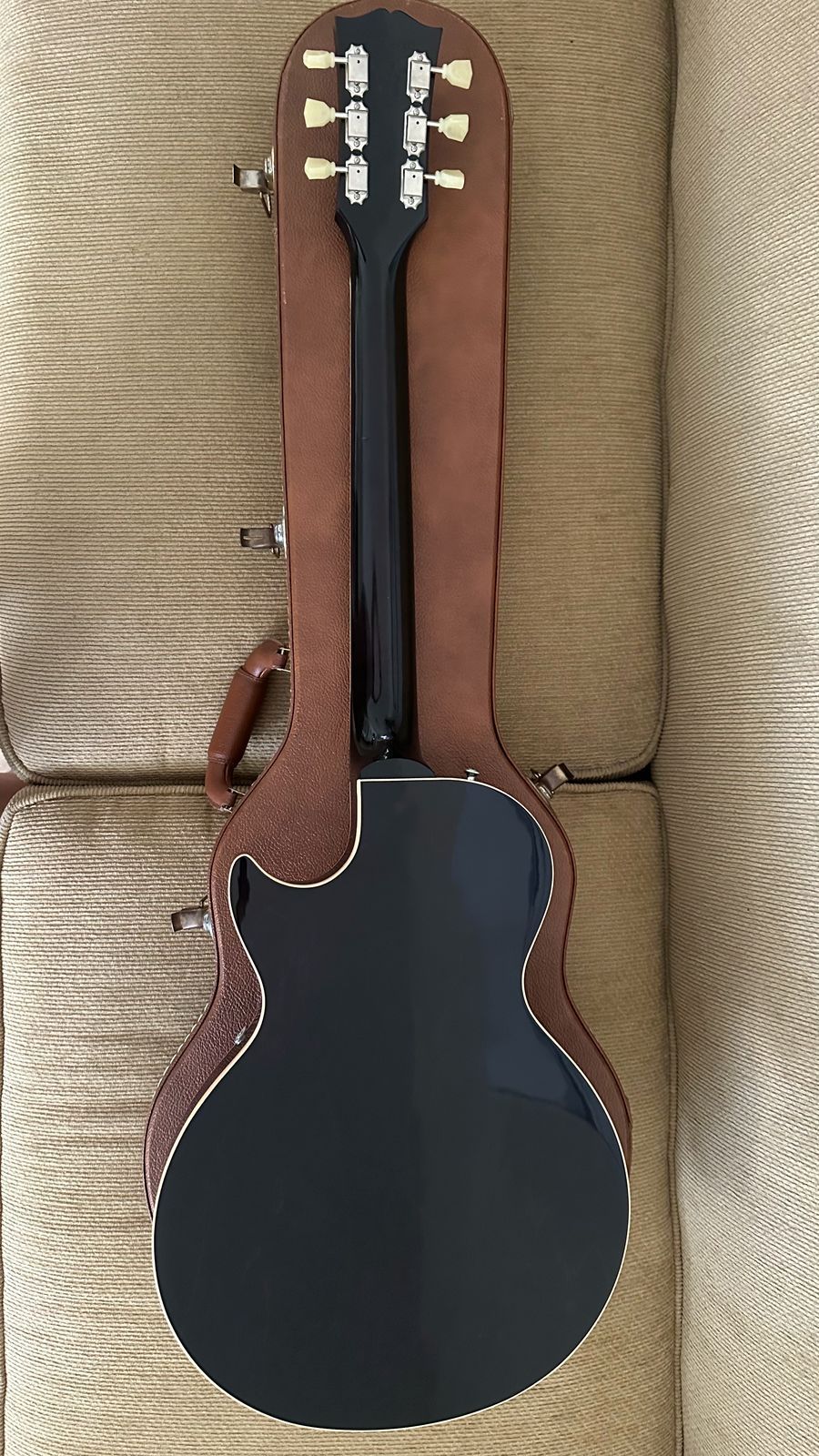

Back
Top
Wood Species: Maple, Poplar, Maple
Pieces: 3-Ply
Grade: Figured
Binding: Cream

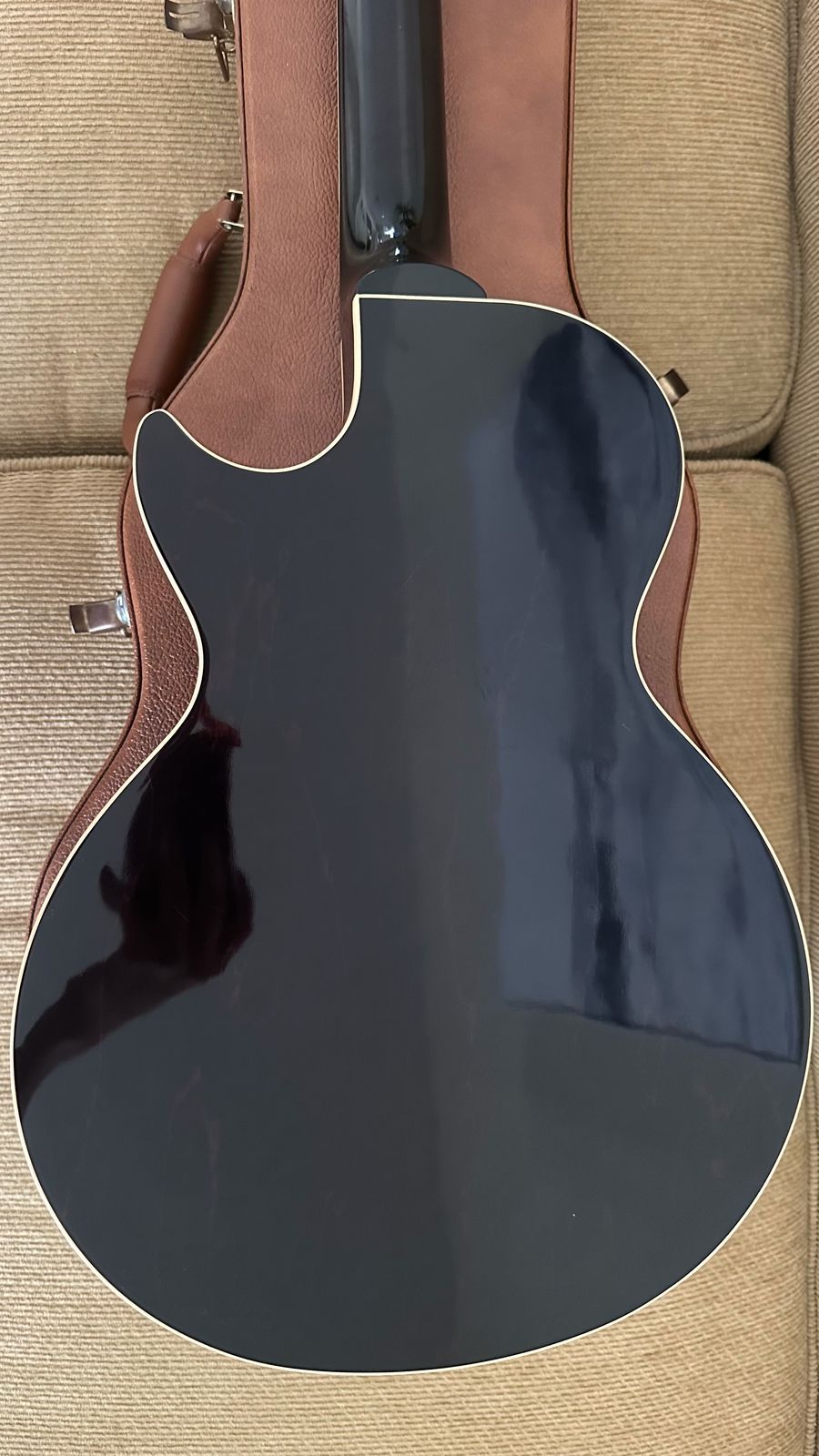

Back
Wood Species: Maple, Poplar, Maple
Pieces: 3-Ply
Density: Plain
Binding: Cream

Rims
Species Wood: Maple, Poplar, Maple
Pieces: 3-Ply
Grade: Plain
Weight
Weight Relief: ES-LP Center Block
Average Weight (body only): 1.3925 kg / 3.070 lbs

Materials Used
Glue: Franklin Titebond 50

Tonal, Resonant, and/or Technical Effect: The sound waves resonate within the hollow airspace of the Maple veneered Body, around the F-holes, and throughout the solid glue joints.

Body Contour
Carve: ES-LP (Semi-Hollow)

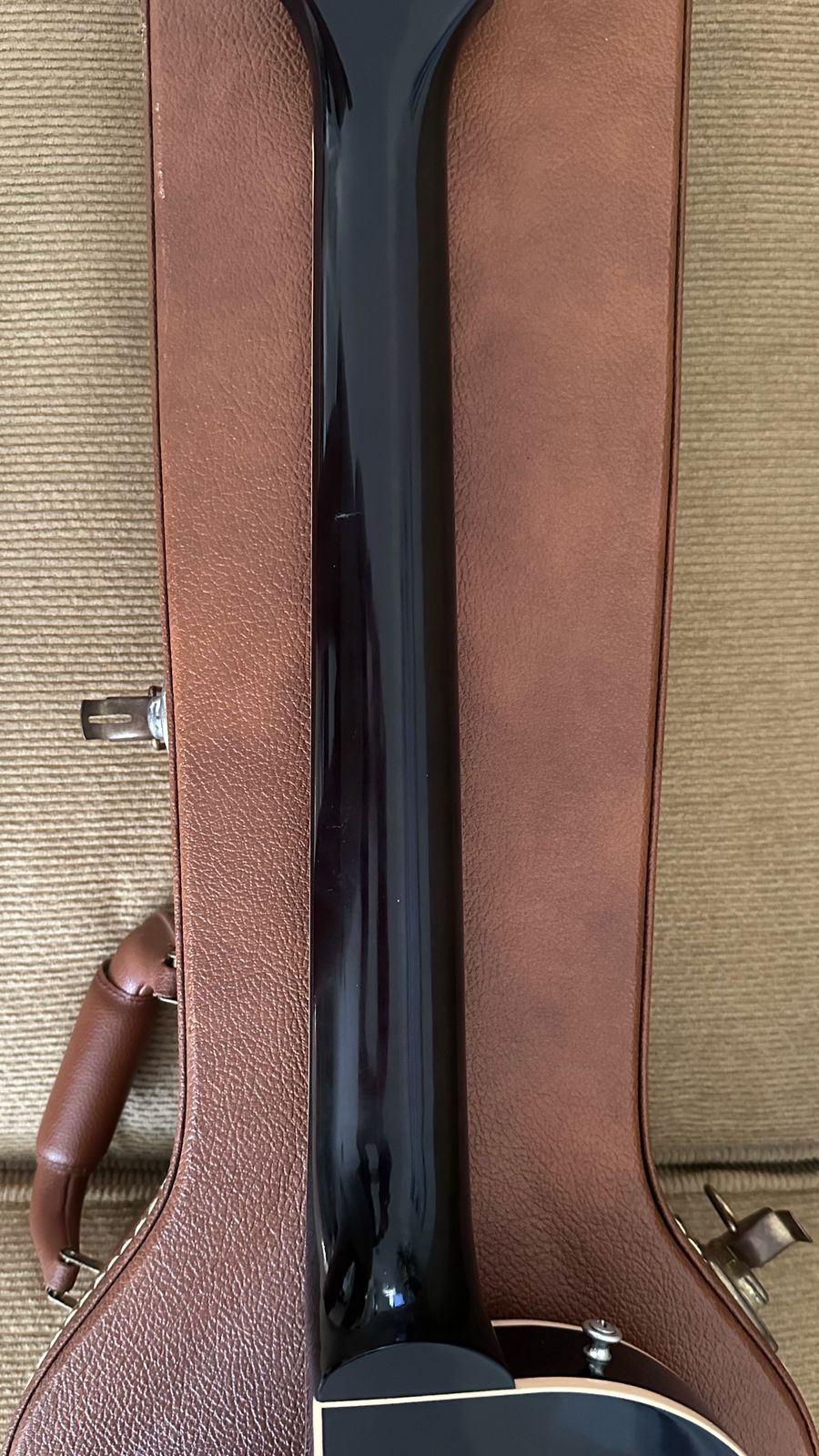

Neck
Wood Species: Mahogany
Pieces: 1

Details
Truss Rod: Historic
Profile: Rounded "C"
Thickness at Fret 1: 21.59 mm / .850"
Thickness at Fret 12: 24.13 mm / .950"
Other Materials: Franklin Titebond 50
Average Weight: 544.31 gm / 1.2 lbs

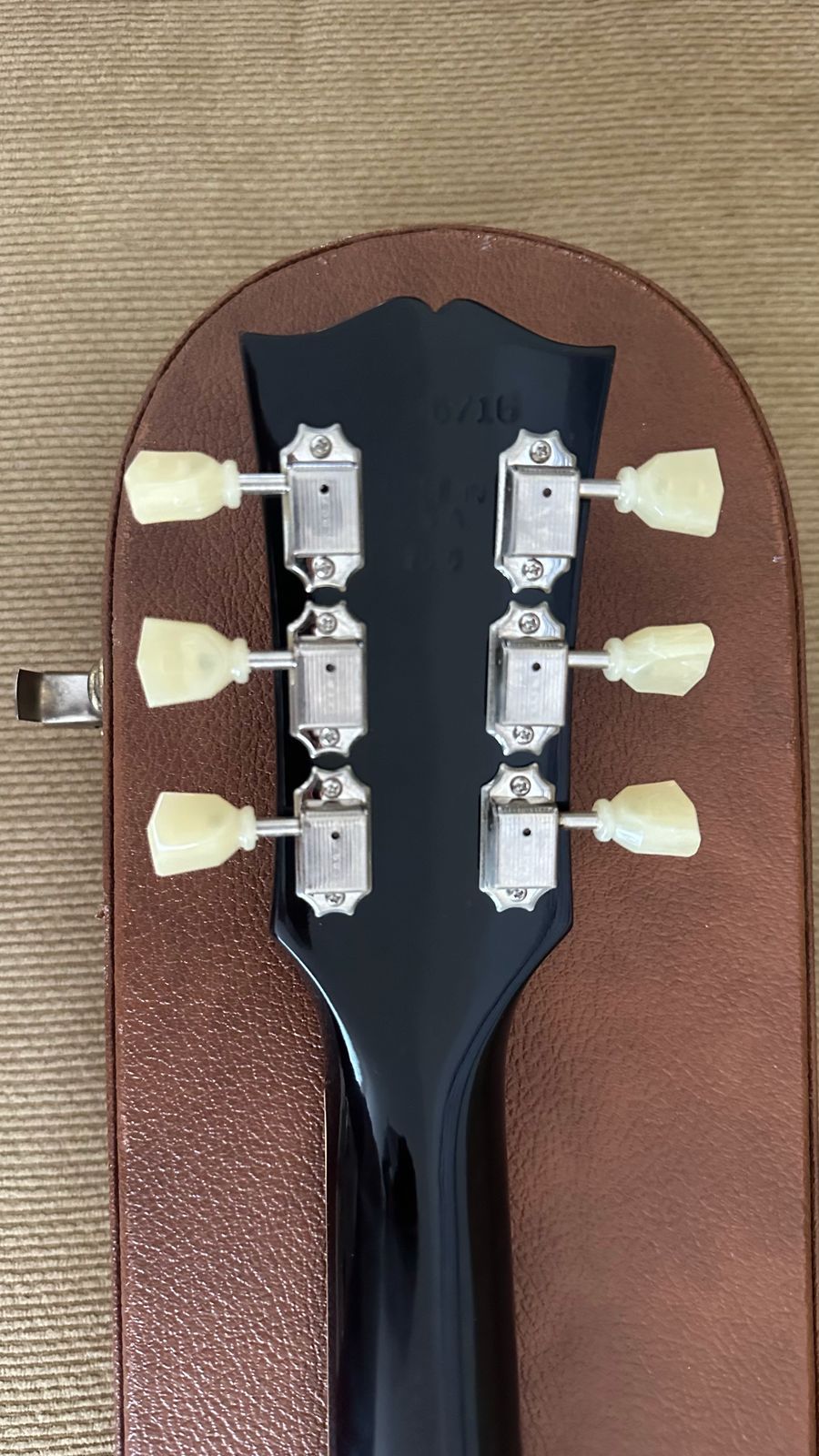

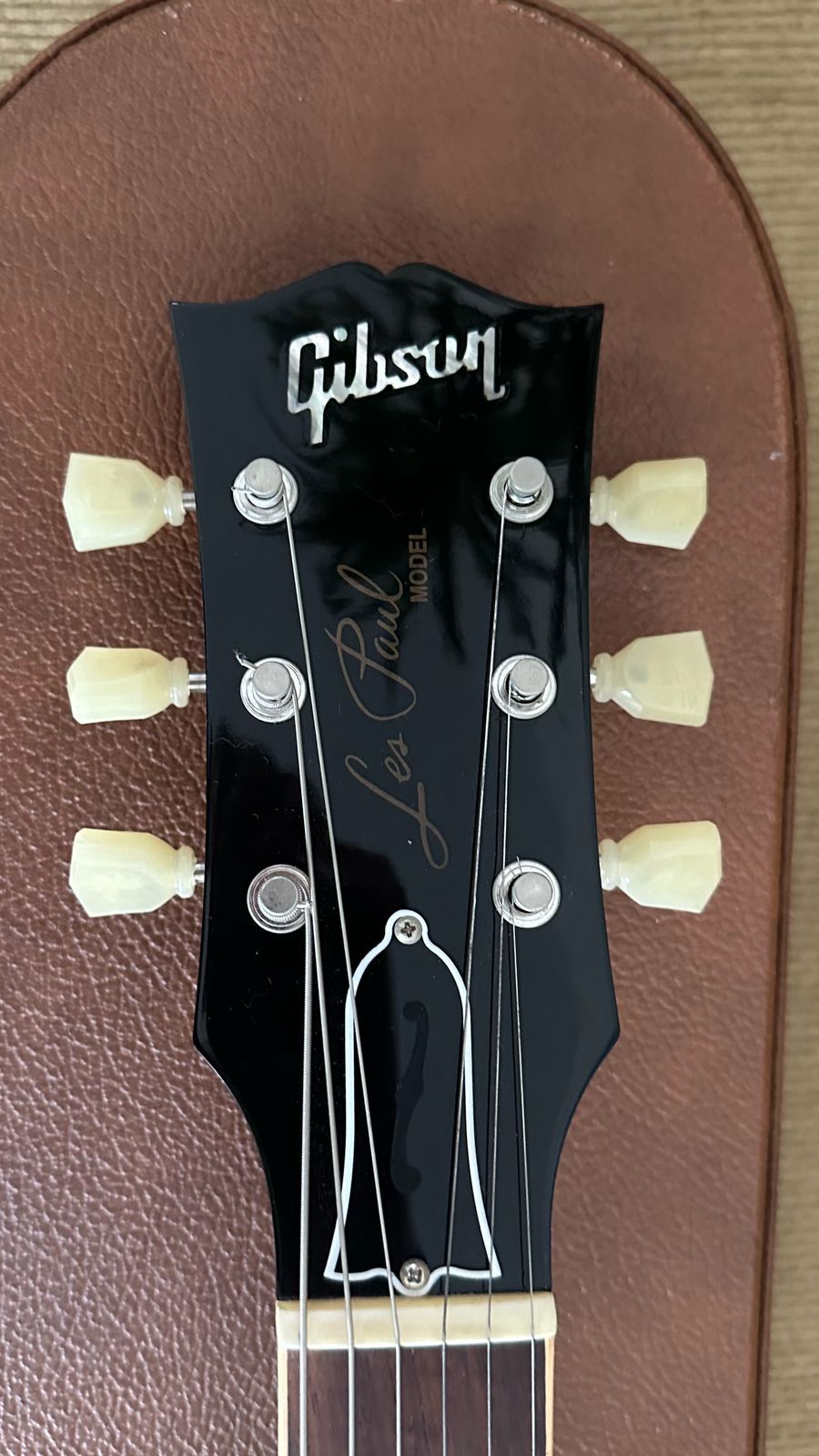

Peg Head
Type: SP-1
Inlay: Mother of Pearl
Logo: Mother of Pearl "Gibson"
Silkscreen: Gold "Les Paul Model"
Headstock Angle: 17 degrees
Tonal, Resonant, and/or Technical Effect: The rounded neck provides an ergonomic feel and the mahogany adds a rich tonal quality

Neck Fit
Joint Angle: 4 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortise and Tenon
Adhesive: Franklin Titebond 50
Gauges Used: Pitch Height Gauge, Alignment Gauge
Nut
Style: White
Material: Bone
Width: 4.318 cm / 1.700"
Slots: E: 1.2268 mm / 0.0483 inches
A: 0.9601 mm / 0.0378 inches
D: 0.6934 mm / 0.0273 inches
G: 0.4534 mm / 0.01785 inches
B: 0.3467 mm / 0.01365 inches
e: 0.2667 mm / 0.0105 inches

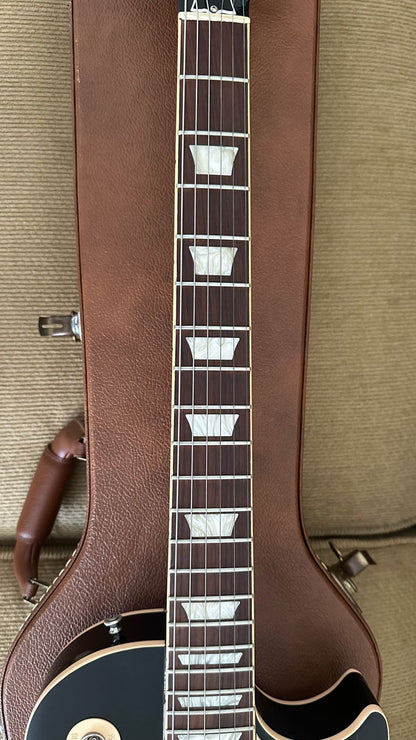

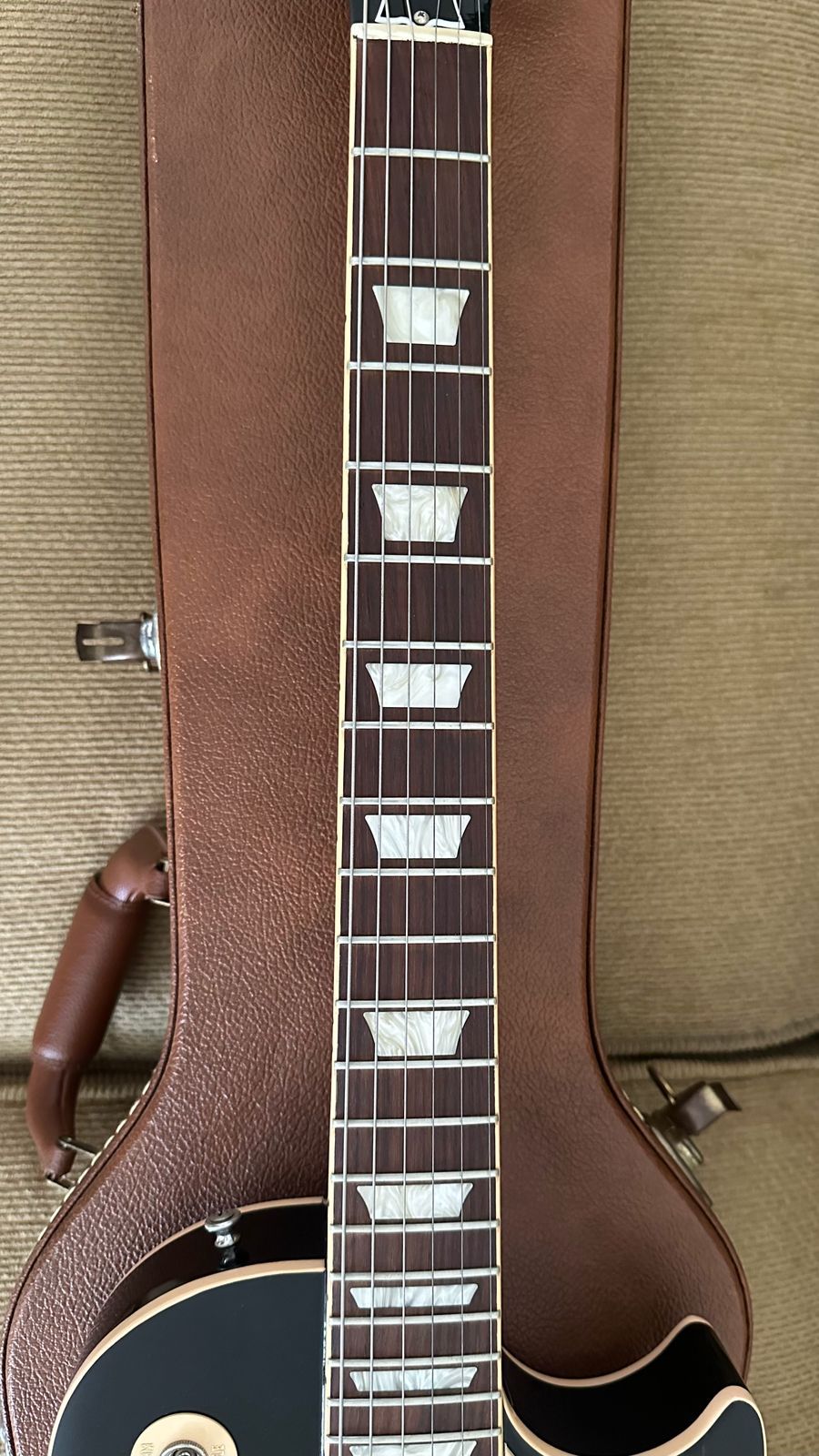

Fingerboard
Wood Species: Rosewood
Pieces: 1
Shade: Dark

Fingerboard Details
Radius: 30.48 cm / 12 "
Frets: 22
Nut/End of Board: 4.318 cm / 1.700" @ nut, 5.6007 cm / 2.205" @ end of board
Scale: 62.865 cm / 24.75"
Binding: Cream
Side Dots (Color): Black

Fingerboard Inlays
Style: Trapezoid
Material: Pearloid
Dimensions: 16.51 mm x 29.718 mm / 0.66" x 1.17 "
Average Weight: 145.1496 gm / 5.12 oz
Finishes

LIGHT BURST
Color Code: LB
Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer
Filler: Walnut
Sealer: 1-1.5 mils
Top: Dark Walnut Stain, Morning Yellow, Tobacco Brown/Cherry mixture
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides, Body and Nut

Electronics

Pickups Rhythm Lead
Style: MHS Humbucker MHS Humbucker
Winds/Coil: Screw side/Slug side: 4900/5100 5200/5400
Material of Wire (gauge): Enamel (42) Enamel (42)
Coil Dimensions (per coil): 6.6294 cm x 1.7272 mm / 2.61" x 0.68 " 6.6294 cm x 1.7272 mm / 2.61" x 0.68 "
Coil Material: ABS ABS
Coil Winding Process: Scatter Wound Scatter Wound
Pole Piece Material: Nickel plated steel Nickel plated steel
Pole Piece Position from Nut: 47.4218 cm / 18.670" 59.5173 cm / 23.432 "
Slug Material: Nickel plated steel Nickel plated steel
Slug Dimensions (diameter x length): 4.7498 mm x 1.24206 cm / 0.187" x .489" 4.7498 mm x 1.24206 cm / 0.187" x .489"
Magnet Material: Alnico III Alnico II
Magnet Position from Nut: 48.26 cm / 19" 58.42 cm / 23"
Magnet Dimensions: 6.35 cm x 1.27 mm / 2.5" x 0.5" 6.35 cm x 1.27 mm / 2.5" x 0.5"
Polarities: Screw side is the south pole of magnet Screw side is the south pole of magnet
Cover: Nickel plated Nickel plated
Qfactor: 3.21 3.2
ResistanceDC: 7526 ohms 7963 ohms
Resonant Frequency: 2859.84 Hz 2695.19 Hz
Tonal & Resonant Advancements: Historically accurate "Patent Applied For" replica with airy tone and unbalanced coils. Slightly under wound.

Product Specs:

• Condition: Excellent (Used)
• Brand: Gibson
• Model: Memphis ES-Les Paul with Bigsby
• Finish: Bourbon Burst
• Categories: Semi-Hollow
• Year: 2016
• Made In: United States
• Fretboard Material: Rosewood
• Color Family: Brown
• Neck Construction: Set-Neck
• Right / Left Handed: Right Handed
• Body Type: Semi-Hollow Body
• Number of Strings: 6-String
• Body Shape: Single Cutaway
• Model Family: Gibson Les Paul
• Finish Pattern: Sunburst
• Pickup Configuration: HH
• Bridge/Tailpiece Type: Tremolo Tailpiece
• Model Sub-Family: Gibson Les Paul ES
• Series: Gibson Memphis
• Number of Frets: 22
• String Type: Steel
• Finish Style: Gloss
